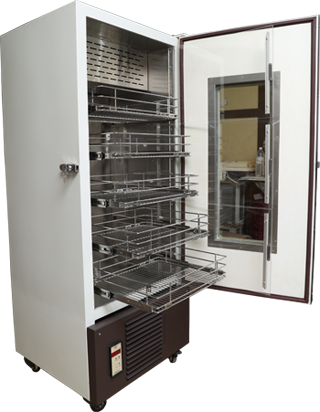

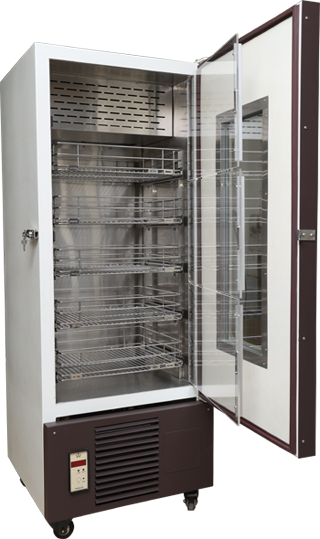

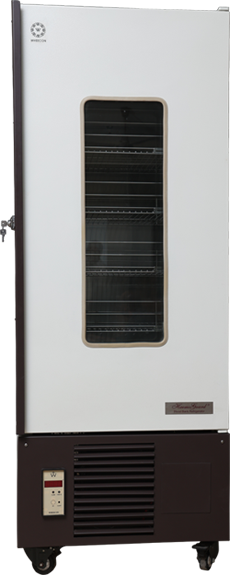

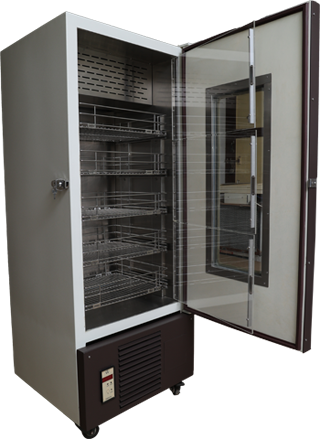

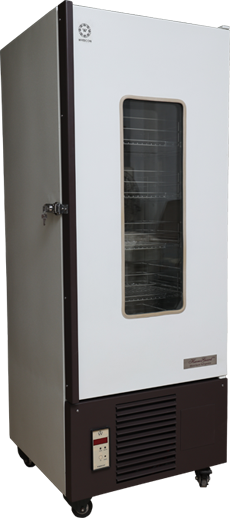

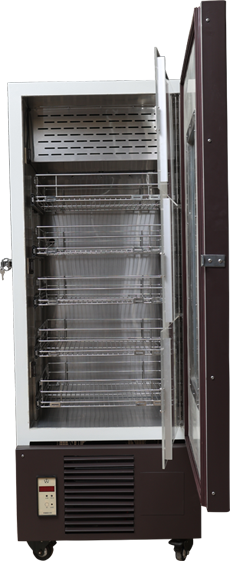

HaemoGuard Blood bank refrigerator (4°c)

Blood Bank Refrigerators for reliable and safe storage of blood bank erythrocyte concentrate at 4°C.

Description

Our committed research and development team has designed the machine with no auto defrost feature, making it one of its kind in the industry along with optional paperless recording and continuous tracking of time and temperature events with alarm history, giving highly reliable track record for storage of sensitive blood with full trail !

Best IN VIVO, closest to in-vitro status with blood storage!

Major merits
  1. Unique refrigeration mechanism, without involving manual or auto defrost, which increases chamber temperature even beyond alarm temperature during such cycles.
  2. Main door, tempered transparent triple layer air/ inert gas filled with special insulation type glass and acrylic sub door for visibility and minimum temperature exchange.
  3. Additional transparent sub doors, to minimise temperature variation.
  4. Temperature probe immersed in a reference fluid to mimic storage material, to provide better temperature control.
  5. Forced air circulation with three fans instead of two, to ensure uniform temperature distribution, in the event of a fan failure.
  6. Fans are switched off when door is open, to minimise temperature exchange and light on, for visibility.
  7. Storage and retrieval of bags with shuttle rack arrangement for easy access to blood bags at the end, with stopper for protection.
  8. Controller, totally in-house developed, battery backed for at least 48 hours with extensive safety features and operator alerts for reliable operation.
Technical specifications
Volume:
650 litres*
Bag capacity
350ml : 312 in six drawers 52 x350 ml per drawer. 450ml : 192 in six drawers 32 x 450ml per drawer.
Temperature:
2 to 8ºC set at +4ºC
Temp uniformity:
±1ºC, with forced air circulation.
Temp. control:
Electronic, micro controller based.
Temp. display:
LED
Temp. sensor:
PT 100, Three wire.
Housing:
Exterior, white powder painted steel. Interior stainless steel lining with rails for drawers.
Refrigerant:
134a, CFC free
Compressor:
High quality, low power consumption type.
Insulation:
PUF, 55cm thick
Drawers:
Six numbers, stainless steel with provision for free air circulation full extension ball bearing slides.
Storage:
Telescopic racks, for easy access to blood bags.
Door:
(i) Transparent triple layer (ii) Sub doors with visibility.
Protection:
Over temperature, battery back-up for over 48 hours, with alarm, and display even during mains failure.
Alarm:
Temp., high / low alarm, power fail, door ajar, condenser efficiency and remote alarm contacts.
Castors:
Coated wheels two inch dia with locking arrangement for front wheels.
Illumination:
LED strip for visibility and lower power consumption.
Dimensions
Internal (WxDxH)mm : (620 x 760 x 1400) External(WxDxH)mm : (770 x 925 x 2025)
Weight:
295 kg (without packing)
Certification
:CE Marked :ISO Certified

*Other capacities available on request
