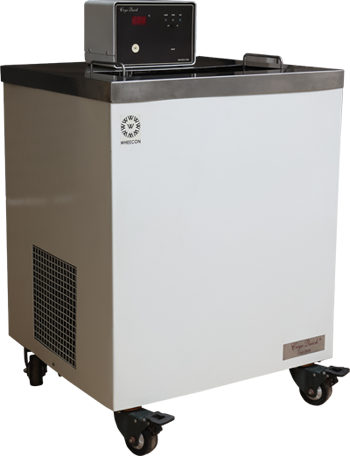

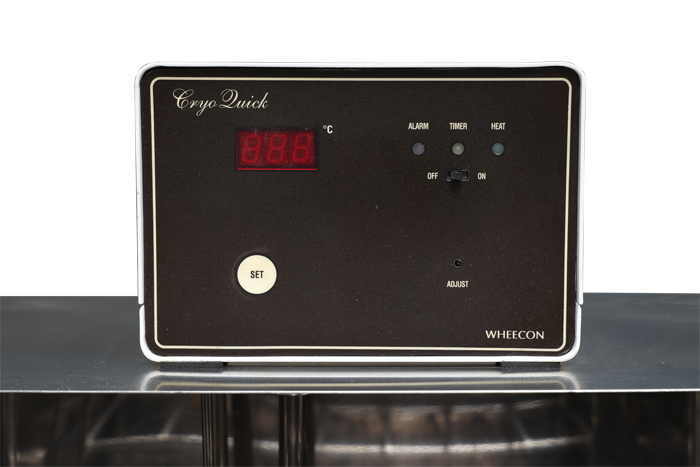

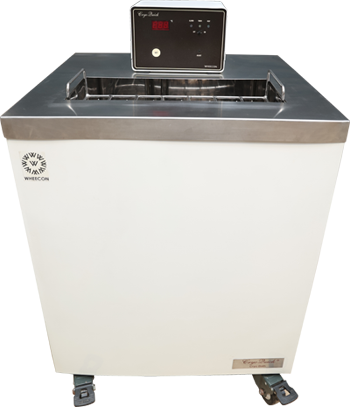

Micro controller based cryo bath for quick and safe preparation of a HIGH YIELD cryoprecipitate for blood or plasma transfusion. CryoQuick system has been designed and manufactured after extensive discussion with blood bankers and offered by the blood banking company for the blood bankers.

Description

The design takes into consideration several practical aspects to offer the end product, cryoprecipitate after effective and safe thawing of the plasma, and incorporates several features. The reliable temperature control device in conjunction with the powerful pump ensures the uniform circulation of water for maintenance of temperature, well within + 0.1°C, one of the most precise devices for the purpose. A very efficient 2KW tubular stainless steel heater assures rapid heating of the water to the required temperature level of 4°C, for quick and efficient thawing of the bags, frozen flat at -35°C, or -80°C, within a short span of time. Time tested proportionally integrated type of electronic circuit employed for precise and accurate control of the temperature, a very important aspect. All parts coming in contact with water are made of high-quality stainless steel without any compromise, for trouble-free operation and service for a long time.

  1. Over-temperature cut-off, with supply to the heater switched off in case of over-temperature, and low water level alarm, for product protection.
  2. Audiovisual alarm and timer, to alert the operator and indicate the end of cycle.
  3. Compact tabletop design and does not occupy space.
Major merits
  1. The most precise temperature-controlled cryo bath in the industry, in its category.
  2. The only cryo bath in the market with individual timer, enabling independent processing of two batches of bags during the same run.
  3. Unique drain valve with tube for automatic tracking of water for easy cleaning and maintenance and free from messy handling.
  4. CryoQuick is the quick(est) bath answering the technical demands and requirements of busy blood banks.
  5. Most elaborate safety features amongst similar units to ensure the best yield of cryoprecipitate and preservation of the precious product during the process.

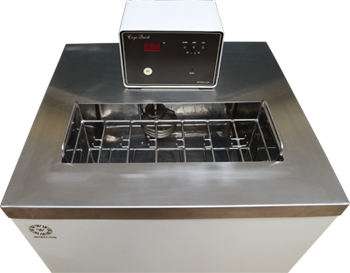

  6. One of its kind, easy to load/unload specially designed cassette for convenient handling of bags through the process.
  7. Factor VIII yield higher by 40% compared to the traditional method.
  8. Tubular heater tucked away from main areas for operator and product safety.
Technical specifications
Capacity:
8 plasma bags
Time for thaw at 4°C:
Less than 90 minutes
Bath temperature:
at +4°C
Temperature control at 4°C:
± 0.1°C
Temperature sensor:
Pt 100
Temperature display:
LED
Bath volume:
approx.20 litres
Alarm (audible, visual):
Over temperature, low water, end of cycle
Refrigeration:
Air cooled compressor and energy saving
Construction:
SS interior and MS exterior
Heater Capacity:
2 KVA
Dimension (LxWxH)mm:
(440 x 385 x 250)
Power supply:
230V AC, 50 Hz
